AFCO / Santhuff’s / Menscer Strut (5 on 4.75 Hub Mount) 001-0199 TBM Brakes

Racing Use Only, Not Legal for Road Use

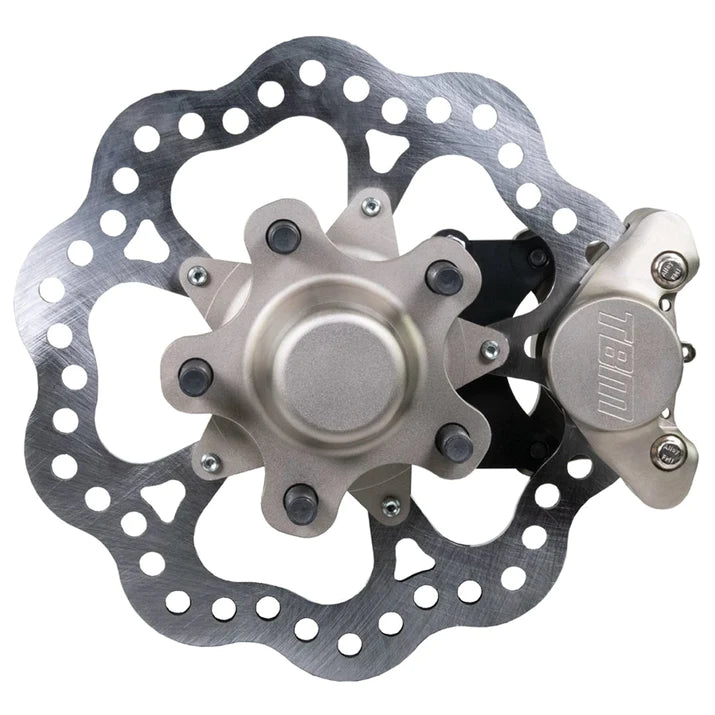

AFCO / Santhuff’s / Menscer Strut (5 on 4.75 Hub Mount) 001-0199

20.25 lb Combined brake weight including all components: 2 hubs, supplied steel studs, bearings, seals, 4 pads, 2 calipers, 2 brackets, 2 rotors with bolts, 2 wheel hats, hardware.

Kit includes:

• F1 2 piston calipers 002-0054SSP-1 / 002-0054SSP-2
• #1 Standard F1 Pads 6-1019
• 10.75x .310 steel revolution rotors 3-10753105525D
• Aluminum caliper mounting brackets 16-0204-1 / 16-0204-2
• Aluminum 5 on 4.75 hubs 8-103
• Timken bearing, races and seals
• 1/2 -20” wheel studs
• Mounting Hardware Kit 011-0199

Wheel Speed Sensor Kit

TBM 2 Piston (F1/DR-1) Front Drag Racing Brake Kits are extremely lightweight and are not suitable for use with factory rear brakes/proportioning. They must be used with a properly installed aftermarket-style 4 piston rear brake kit.

Kit fits the following:

• AFCO / Menscer Struts
• Santhuff’s 8 & 15 degree struts

⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

*Please use red Loctite on all rotor bolts*

Installation Instructions

We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
